Description
The PHANTOM FCT foils offer great balance, accessibility, and versatility, perfect for a wide range of riders. They excel in every aspect, whether it’s providing smooth glide, easy planing starts, or effortless carves through waves.
Thanks to a work on the lift distribution, aspect ratio and shape, these foils allow you to pump easily so you can start planing quickly. The take-off is super smooth and the acceleration progressive, allowing you to confidently improve from one session to the next. Whether you’re wing foiling, surf foiling, or enjoying downwinding, the PHANTOM FCT foils promise performance and fun.
- The PHANTOM FCT 1280 is incredibly efficient in waves greater than 1m. It provides a versatile program like the 1480, but with a bit more power. It carves better, goes faster, and can be used in more powerful waves. It is also suitable for lighter riders (< 70 kg).
- The PHANTOM FCT 1480 combines efficiency and accessibility. Its lift allows you to glide endlessly while having fun thanks to its incredible maneuverability and stability. It is an ultra-versatile foil that will allow you to surf in waves < 1m50, venture downwind, wing foil, or try yourself at wakefoiling… It does everything well, even in weak conditions.
- The PHANTOM FCT 1680 is ideal for low-wind conditions or riders of a larger stature. This front wing is large and stable, but that remains maneuverable and that will bring extra power and performance in light wind.
These foils are built with the Foil Compression Technology, a F-ONE innovation that offers impressive mechanical properties. Our FCT construction has been further improved and refined; these new PHANTOM FCT foils benefit from an additional carbon ply integrated into the construction, hence increasing their resistance and stiffness for even more control and stability.
The fuselage can be directly connected to the F-ONE aluminum mast of the desired length. The setup and disassembly are also extremely easy, and the whole is very travel friendly.
All in all, this tough and ding-resistant technology leads to one of the most accessible and scalable foil setups, all while keeping the DNA of what makes the PHANTOM foils so successful.
Using a refined design to achieve higher finesse, the Phantom foils glide faster and for longer. Connecting waves whether during surfing or downwinding thereby becomes much easier and more fun. Yet, connecting waves isn’t much fun if you can’t turn and this is why carving is also part of the DNA of the Phantom foils. By working on the lift distribution, arch shape and other details we achieved a high-aspect, performance foil that can carve smooth curves on the waves and swells.
- Speed and glide
- Pumping/downwind machine
- Nimble and maneuverable
The Phantom wings are recommended with the R275 Surf stab made with the RTM technology. This stabilizer offers better glide and a looser feel. It’s the ideal match for the speed and glide of the Phantom wings. The looser feel will help turning these higher aspect wings and provide an awesome surfing experience.

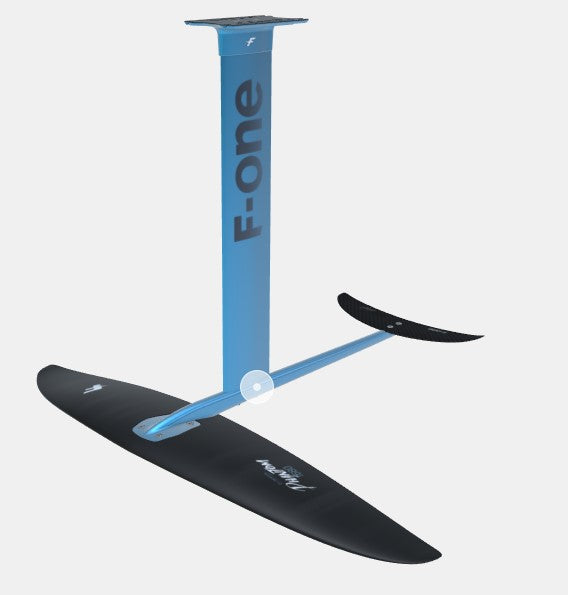

F-One Phantom 1280 FCT Foil Set
Includes: FW PHANTOM FCT 1280 + ALU FUSELAGE 67 SURF + STAB R275 SURF

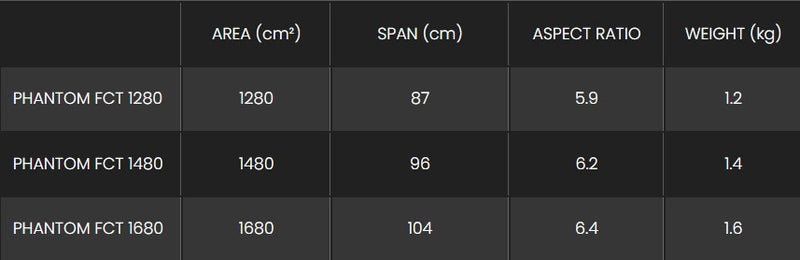

Area: 1280 cm sq
Span: 87 cm
Aspect Ratio: 5.9
Alu Fuselage: 67 Surf or 74 Surf
F-one Phantom 1480 FCT Foil Set
Includes: FW PHANTOM FCT 1480 + ALU FUSELAGE 74 SURF + STAB R275 SURF
Area: 1480 cm sq
Span: 96 cm
Aspect Ratio: 6.2
Alu Fuselage: 74 Surf
Features
Foil Compression Technology
The Foil Compression Technology is a F-ONE innovation offering impressive mechanical properties making it particularly suited for foil subjected to high stresses and bending loads. F-ONE's FCT front wings are built in fiberglass around a high density foam core. The wing is covered by a thin and strong shield skin. This technology offers one of the most accessible foil setup market whilst keeping the DNA of its carbon siblings.
Fusion Link
The Fusion Link enables the perfect connection between the Fuselage and the Front Wing using a large solid plate at the front of the fuselage. It is screwed to the front wing using 4 x M6 – 14 mm screws, resulting in a connection geometry that ensures a very solid and stiff assembly.
Aluminum 6063 and 606
This aluminum alloy boasts some very good mechanical properties and can be processed in many different ways while also offering a natural resistance to corrosion.
Alu Mast 45 > 95 cm
The F-ONE aluminum mast can be used for all disciplines, kite, surf, stand up paddle, wing foil and windsurf. The profile is extruded with precision from 6063 aluminum block.
Stab R275 SURF
The R275 SURF stab is specifically designed for carving and pumping. Its flatter arch shape delivers high efficiency while pumping in order to connect more waves. Its shape and smaller area ensure sharp turns and more speed with a very loose feeling, closer to that of a shortboard. It is a high-performance stab that suits the Phantom range. Built in RTM and designed to be securely mounted on F-ONE fuselages, its profile and angle of incidence were tuned to achieve a very intuitive balance.
Alu fuselage 67 and 74 SURF
Ideal stability
Robust and durable
